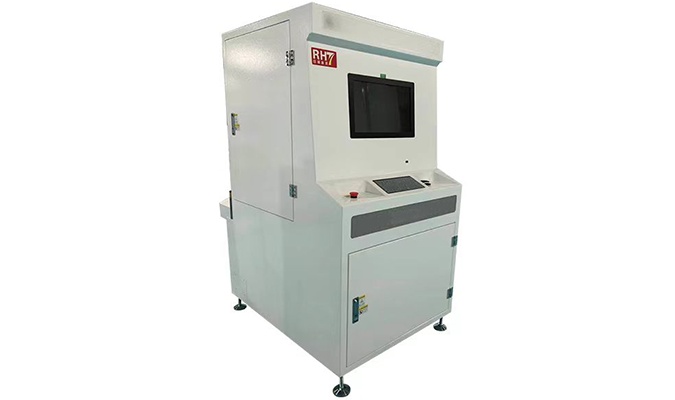

Keyboard Brightness Machine (Color Type)
Equipment Introduction:
This device is used for keyboard detection in the NB industry, with functions including chromaticity detection, global brightness detection, brightness defect detection, luminous area calculation, multi area custom testing, data uploading, etc.
Technical Conditions:
Equipment model: RIB2-400A
Dimensions (mm): 900 (L) * 1400 (W) * 2000 (H)
Weight: 350kg
Test content: brightness, uniformity, color difference, luminous area
Test maximum size: 390 * 220mm
Voltage: 220V
Rated power: 2KW
Rated current: 10A
This device is used for keyboard detection in the NB industry, with functions including chromaticity detection, global brightness detection, brightness defect detection, luminous area calculation, multi area custom testing, data uploading, etc.
Technical Conditions:
Equipment model: RIB2-400A
Dimensions (mm): 900 (L) * 1400 (W) * 2000 (H)
Weight: 350kg
Test content: brightness, uniformity, color difference, luminous area
Test maximum size: 390 * 220mm
Voltage: 220V
Rated power: 2KW
Rated current: 10A
Matching Equipment:
Matching test system model: RH-RLS-4CCH
Brightness accuracy: ± 3%
Repetition accuracy:>99%
Color coordinate accuracy: ± 0.01
Area grabbing accuracy:>98%
Minimum range of defect detection: 0.3mm * 0.3mm
Filing time: 15 minutes
Test time: 9s/pcs (manual loading and unloading time<8s)
測試時間：9s/pcs(人工上下料時間<8s)
Matching test system model: RH-RLS-4CCH
Brightness accuracy: ± 3%
Repetition accuracy:>99%
Color coordinate accuracy: ± 0.01
Area grabbing accuracy:>98%
Minimum range of defect detection: 0.3mm * 0.3mm
Filing time: 15 minutes
Test time: 9s/pcs (manual loading and unloading time<8s)
測試時間：9s/pcs(人工上下料時間<8s)
